#include <array>
#include <cmath>
#include <complex>
#include <cstdlib>
#include <iomanip>
#include <iostream>
#include <map>

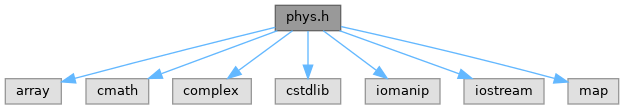

Include dependency graph for phys.h:

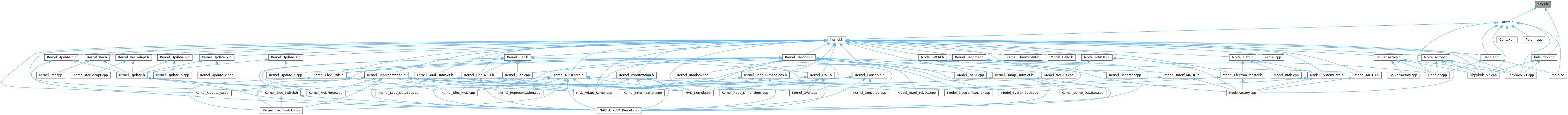

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	phys::unit_error

struct	phys::seq<... >
	compile-time array operations realized in c++11 standard More...

struct	phys::gens< N, S >

struct	phys::gens< 0, S... >

class	phys::dimensions< T, N >

class	phys::uval

struct	phys::inner::matrix< T, M, N >

class	phys::unitsys

Namespaces
namespace	phys

namespace	phys::math

namespace	phys::inner

Macros
#define	CONSTTYPE const
	make this header is compatible to c++11 standard

#define	CONSTEXPR_DECOR

#define	PHYS_DEFINE_UNITSYS_NAMESPACE(USNAME, _0, _1, _2, _3, _4, _5, _6)

Typedefs
using	real_precision = double

typedef dimensions< real_precision, dimension7_size >	phys::dimension7

typedef unitsys	phys::us
	< generalized hatree is same to hatree when out of statistics (k_Boltzman & N_Avagadro)

Enumerations
enum	phys::dimension7_type { phys::_L , phys::_T , phys::_M , phys::_I , phys::_Q , phys::_N , phys::_J }

Functions
constexpr std::complex< real_precision >	phys::math::im (0.0L, 1.0L)
	Imaginary Unit.

constexpr std::complex< real_precision >	phys::math::iu (1.0L, 0.0L)

constexpr std::complex< real_precision >	phys::math::iz (0.0L, 0.0L)

template<typename T , std::size_t N>
constexpr T	phys::array_add_n (const std::array< T, N > a, const std::array< T, N > b, int n)

template<typename T , std::size_t N, int... S>
constexpr std::array< T, N >	phys::array_add_impl (const std::array< T, N > a, const std::array< T, N > b, seq< S... >)

template<typename T , std::size_t N>
constexpr std::array< T, N >	phys::array_add (const std::array< T, N > a, const std::array< T, N > b)

template<typename T , std::size_t N>
constexpr T	phys::array_minus_n (const std::array< T, N > a, const std::array< T, N > b, int n)

template<typename T , std::size_t N, int... S>
constexpr std::array< T, N >	phys::array_minus_impl (const std::array< T, N > a, const std::array< T, N > b, seq< S... >)

template<typename T , std::size_t N>
constexpr std::array< T, N >	phys::array_minus (const std::array< T, N > a, const std::array< T, N > b)

template<typename T , std::size_t N>
constexpr T	phys::array_scale_n (const std::array< T, N > a, T b_val, int n)

template<typename T , std::size_t N, int... S>
constexpr std::array< T, N >	phys::array_scale_impl (const std::array< T, N > a, const T b, seq< S... >)

template<typename T , std::size_t N>
constexpr std::array< T, N >	phys::array_scale (const std::array< T, N > a, T b)

constexpr real_precision	phys::reduce_l_nonzero (const dimension7 dim)

constexpr real_precision	phys::reduce_l_energy (const dimension7 dim)

constexpr uval	phys::operator* (const uval &lhs, const uval &rhs)

constexpr uval	phys::operator* (const real_precision &lhs, const uval &rhs)

constexpr uval	phys::operator* (const uval &lhs, const real_precision &rhs)

constexpr uval	phys::operator/ (const uval &lhs, const uval &rhs)

constexpr uval	phys::operator/ (const real_precision &lhs, const uval &rhs)

constexpr uval	phys::operator/ (const uval &lhs, const real_precision &rhs)

const uval	phys::operator+ (const uval &lhs, const uval &rhs)

const uval	phys::operator- (const uval &lhs, const uval &rhs)

uval	phys::power (const uval &lhs, const real_precision &index)

bool	phys::is_same_dimension7 (const uval &lhs, const uval &rhs)

std::string	phys::to_string (const uval &u)

universal physical constant
constexpr uval	phys::G_gravitional_constant (dimension7{{3, -2, -1}}, 6.6740831E-11L)

constexpr uval	phys::c_lightspeed (speed_d, 2.997924580E+8L)

constexpr uval	phys::ep0_permittivity (permittivity_d, 8.854187817E-12L)
	1/(4pike)

constexpr uval	phys::mu0_permeability (magnetic_permeability_d, 1.256637061E-6L)
	4pike/c^2

constexpr uval	phys::ke_Comloub (dimensionless_d/permittivity_d, 8.9875517873681764E+9L)

constexpr uval	phys::R_gas_constant (molar_entropy_d, 8.314459848L)
	k * N

constexpr uval	phys::Rydberg_constant (wave_number_d, 10973731.56850865L)
	me* e ^ 4 / (8 * ep0 ^ 2 * h ^ 3 * c)

constexpr uval	phys::Faraday_constant (electric_charge_d/amount_of_substance_d, 96485.3328959L)
	e*N

constexpr uval	phys::Stefan_constant (dimension7{{0, -3, 1, -4}}, 5.67036713E-8L)
	pi^2 kB^4/(60hb^3c^2)

constexpr uval	phys::muB_magnetic_moment (magnetic_moment_d, 9.27400999457E-24L)
	ehb / (2me)

constexpr uval	phys::muN_magnetic_moment (magnetic_moment_d, 5.05078369931E-27L)
	ehb / (2mn)

constexpr uval	phys::Bohr_length (length_d, 5.291772106712E-11L)
	hb^2/(kemee^2)

constexpr uval	phys::h_Planck (action_d, 6.62607004081E-34L)

constexpr uval	phys::hb_Planck (action_d, 1.05457180013E-34L)
	h/(2*pi)

constexpr uval	phys::me_mass (mass_d, 9.1093835611E-31L)

constexpr uval	phys::mp_mass (mass_d, 1.67262189821E-27L)

constexpr uval	phys::mn_mass (mass_d, 1.67492749804e-27L)

constexpr uval	phys::amu_mass (mass_d, 1.66053886E-27L)

constexpr uval	phys::e_charge (electric_charge_d, 1.602176620898E-19L)

constexpr uval	phys::k_Boltzman (entropy_d, 1.3806490351E-23L)

constexpr uval	phys::N_Avagadro (dimensionless_d/amount_of_substance_d, 6.02214085774E+23L)

minimal constexpr functions
template<typename T >
CONSTEXPR_DECOR T	phys::inner::exp_int (int n)

template<typename T >
CONSTEXPR_DECOR long double	phys::inner::exp (T num)

template<typename T >
CONSTEXPR_DECOR long double	phys::inner::log (T num)

template<typename T >
CONSTEXPR_DECOR long double	phys::inner::pow (T a, T b)

minimal linalg utils for solving unit systems at a compile-time cost
template<typename T , std::size_t M, std::size_t N>
CONSTTYPE std::tuple< matrix< T, M, N >, std::size_t, T >	phys::inner::gauss_jordan_impl (matrix< T, M, N > m, T tolerance)

template<typename T , std::size_t M>
CONSTTYPE matrix< T, M, M >	phys::inner::inverse (matrix< T, M, M > m)

template<typename T , std::size_t M, std::size_t N, std::size_t P>
CONSTTYPE matrix< T, M, P >	phys::inner::matmul (matrix< T, M, N > a, matrix< T, N, P > b)

template<typename T , std::size_t M, std::size_t N>
std::ostream &	phys::inner::operator<< (std::ostream &os, matrix< T, M, N > m)

universal namespace definitions for useful uval systems
	phys::PHYS_DEFINE_UNITSYS_NAMESPACE (si, _base_1m, _base_1s, _base_1kg, _base_1A, _base_1K, _base_1mol, _base_1cd)

	phys::PHYS_DEFINE_UNITSYS_NAMESPACE (planck, c_lightspeed, hb_Planck, G_gravitional_constant, k_Boltzman, _base_1A, _base_1mol, _base_1cd)

	phys::PHYS_DEFINE_UNITSYS_NAMESPACE (god_given, c_lightspeed, hb_Planck, G_gravitional_constant, _base_1A, _base_1K, _base_1mol, _base_1cd)

	phys::PHYS_DEFINE_UNITSYS_NAMESPACE (stoney, c_lightspeed, G_gravitional_constant, ke_Comloub, e_charge, _base_1K, _base_1mol, _base_1cd)

	phys::PHYS_DEFINE_UNITSYS_NAMESPACE (natural, c_lightspeed, hb_Planck, me_mass, ep0_permittivity, _base_1K, _base_1mol, _base_1cd)

	phys::PHYS_DEFINE_UNITSYS_NAMESPACE (gauss, 0.01L _base_1m, _base_1s, 0.001L _base_1kg, ke_Comloub, _base_1K, _base_1mol, _base_1cd)

	phys::PHYS_DEFINE_UNITSYS_NAMESPACE (rydberg, hb_Planck, 2 me_mass, e_charge e_charge/2, ke_Comloub, _base_1K, _base_1mol, _base_1cd)

	phys::PHYS_DEFINE_UNITSYS_NAMESPACE (hartree, hb_Planck, me_mass, e_charge, ke_Comloub, _base_1K, _base_1mol, _base_1cd)

	phys::PHYS_DEFINE_UNITSYS_NAMESPACE (ghartree, hb_Planck, me_mass, e_charge, ke_Comloub, k_Boltzman, N_Avagadro, _base_1cd)

	phys::PHYS_DEFINE_UNITSYS_NAMESPACE (quantum_chromo_dynamics, c_lightspeed, hb_Planck, mp_mass, e_charge, _base_1K, _base_1mol, _base_1cd)

	phys::PHYS_DEFINE_UNITSYS_NAMESPACE (au_test, hb_Planck, me_mass, e_charge, ke_Comloub, k_Boltzman, N_Avagadro, _base_1cd)

	phys::PHYS_DEFINE_UNITSYS_NAMESPACE (amu, hb_Planck, me_mass, e_charge, ke_Comloub, _base_1K, _base_1mol, _base_1cd)

Variables
constexpr real_precision	phys::math::eu = 2.718281828459045235360287
	Euler'Constant.

constexpr real_precision	phys::math::pi = 3.141592653589793238462643L
	pi

constexpr real_precision	phys::math::twopi = 6.283185307179586476925287L

constexpr real_precision	phys::math::halfpi = 1.570796326794896619231321L

constexpr real_precision	phys::math::eps8 = 1.0E-8L

constexpr real_precision	phys::math::eps16 = 1.0E-16L

constexpr real_precision	phys::math::eps32 = 1.0E-32L

constexpr real_precision	phys::math::sqrttwo = 1.414213562373095048801689L

constexpr real_precision	phys::math::sqrthalf = 0.707106781186547524400844L

const int	phys::dimension7_size = 7
	dimension7 is provided as compile-time dimensional tools

const std::map< const dimension7, const std::string >	phys::description

static const std::map< std::string, real_precision >	phys::uval_prefix

static const std::map< std::string, uval >	phys::uval_names

static CONSTTYPE real_precision	phys::au_2_amu = unitsys::conv(au::unit, amu_mass)
	1mea means we measure a quantity at 1*N level.

static CONSTTYPE real_precision	phys::au_2_ang = unitsys::conv(au::unit, 1e-10L * _base_1m)

static CONSTTYPE real_precision	phys::au_2_ev = unitsys::conv(au::unit, e_charge* _base_1V)

static CONSTTYPE real_precision	phys::au_2_J_1mea = unitsys::conv(au::unit, _base_1J / _base_1mol) * au::N

static CONSTTYPE real_precision	phys::au_2_kcal_1mea = unitsys::conv(au::unit, 1e+3L * _nostd_1cal / _base_1mol) * au::N

static CONSTTYPE real_precision	phys::au_2_g_1mea = unitsys::conv(au::unit, 1e-3L * _base_1kg / _base_1mol) * au::N

static CONSTTYPE real_precision	phys::au_2_wn = unitsys::conv(au::unit, h_Planck* c_lightspeed / (0.01L * _base_1m))

static CONSTTYPE real_precision	phys::au_2_fs = unitsys::conv(au::unit, 1e-15L * _base_1s)

static CONSTTYPE real_precision	phys::au_2_ps = unitsys::conv(au::unit, 1e-12L * _base_1s)

static CONSTTYPE real_precision	phys::au_2_K = unitsys::conv(au::unit, _base_1K)

static CONSTTYPE real_precision	phys::au_2_angoverps = au_2_ang / au_2_ps

base dimension7
constexpr dimension7	phys::dimensionless_d {{}}
	[1]

constexpr dimension7	phys::length_d {{1, 0, 0, 0, 0, 0, 0}}
	[L]

constexpr dimension7	phys::time_d {{0, 1, 0, 0, 0, 0, 0}}
	[T]

constexpr dimension7	phys::mass_d {{0, 0, 1, 0, 0, 0, 0}}
	[M]

constexpr dimension7	phys::electric_current_d {{0, 0, 0, 1, 0, 0, 0}}
	[I]

constexpr dimension7	phys::thermodynamic_temperature_d {{0, 0, 0, 0, 1, 0, 0}}
	[Q]

constexpr dimension7	phys::amount_of_substance_d {{0, 0, 0, 0, 0, 1, 0}}
	[N]

constexpr dimension7	phys::luminous_intensity_d {{0, 0, 0, 0, 0, 0, 1}}
	[J]

constexpr dimension7	phys::current_d = electric_current_d

constexpr dimension7	phys::temperature_d = thermodynamic_temperature_d

constexpr dimension7	phys::amount_d = amount_of_substance_d

constexpr dimension7	phys::none_d = dimensionless_d

derived (L) dimension7
constexpr dimension7	phys::distance_d = length_d

constexpr dimension7	phys::wavelength_d = length_d

constexpr dimension7	phys::wave_number_d {{-1, 0, 0}}
	[L^-1]

constexpr dimension7	phys::area_d {{2, 0, 0}}
	[L^2]

constexpr dimension7	phys::volume_d {{3, 0, 0}}
	[L^3]

derived (T) dimension7
constexpr dimension7	phys::frequency_d {{0, -1, 0}}
	[T^-1]

constexpr dimension7	phys::angular_velocity_d {{0, -1, 0}}
	[T^-1]

constexpr dimension7	phys::angular_acceleration_d {{0, -2, 0}}
	[T^-2]

constexpr dimension7	phys::activity_of_a_nuclide_d = frequency_d

derived (L, T) dimension7
constexpr dimension7	phys::speed_d {{1, -1, 0}}
	[L*T^-1]

constexpr dimension7	phys::acceleration_d {{1, -2, 0}}
	[L*T^-2]

constexpr dimension7	phys::jerk_d {{1, -3, 0}}
	[L*T^-3]

constexpr dimension7	phys::jounce_d {{1, -4, 0}}
	[L*T^-4]

constexpr dimension7	phys::crackle_d {{1, -5, 0}}
	[L*T^-5]

constexpr dimension7	phys::pop_d {{1, -6, 0}}
	[L*T^-6]

constexpr dimension7	phys::absement_d {{1, 1, 0}}
	[L*T]

constexpr dimension7	phys::area_flow_rate_d {{2, -1, 0}}
	[L^2*T^-1]

constexpr dimension7	phys::volume_flow_rate_d {{3, -1, 0}}
	[L^3*T^-1]

constexpr dimension7	phys::kinematic_viscosity_d = area_flow_rate_d
	[L^2*T^-1] = viscosity / density

constexpr dimension7	phys::thermal_diffusivity_d
	[L^2T^-1] = thermal_conductivity / (specific_heat_capacity density)

constexpr dimension7	phys::specific_energy_d {{2, -2, 0}}
	[L^2/T^2] (count) energy per mass

constexpr dimension7	phys::dose_equivalent_d = specific_energy_d
	[L^2/T^2] (radiation) energy per mass

constexpr dimension7	phys::absorbed_dose_d = specific_energy_d
	[L^2/T^2] (radiation) energy per mass

constexpr dimension7	phys::absorbed_dose_rate_d {{2, -3, 0}}
	[L^2/T^3] (radiation) power per mass

constexpr dimension7	phys::substance_permeability_d {{-1, 1, 0}}
	[L^-1*T]

derived (L, T, M) dimension7
constexpr dimension7	phys::inertia_d {{2, 0, 1}}
	[M*L^2]

constexpr dimension7	phys::mass_line_density_d {{-1, 0, 1}}
	[M/L] mass per line

constexpr dimension7	phys::mass_area_density_d {{-2, 0, 1}}
	[M/L^2] mass per area

constexpr dimension7	phys::mass_density_d {{-3, 0, 1}}
	[M/L^3] mass per volume

constexpr dimension7	phys::specific_volume_d {{3, 0, -1}}
	[L^3/M] volume per mass

constexpr dimension7	phys::mass_flow_rate_d {{0, -1, 1}}
	[M/T] mass per time

constexpr dimension7	phys::mass_flow_acceleration_d {{0, -2, 1}}
	[M/T^2] mass per per time

constexpr dimension7	phys::mass_flow_jerk_d {{0, -3, 1}}
	[M/T^3] mass per per per time

constexpr dimension7	phys::force_d {{1, -2, 1}}
	[M*L/T^2] mass times acceleration

constexpr dimension7	phys::momentum_d {{1, -1, 1}}
	[M*L/T] force integrate time

constexpr dimension7	phys::energy_d {{2, -2, 1}}
	[M*L^2/T^2] force integrate length

constexpr dimension7	phys::moment_of_force_d = energy_d
	[M*L^2/T^2] force cross length

constexpr dimension7	phys::torque_d = moment_of_force_d

constexpr dimension7	phys::angular_momentum_d {{2, -1, 1}}
	[M*L^2/T] torque integrate time

constexpr dimension7	phys::action_d = angular_momentum_d
	[M*L^2/T] energy integrate time

constexpr dimension7	phys::inv_ener_d {{-2, 2, -1}}
	[M^-1L^-2T^2], inversed energy, such as 1/(kB * T)

constexpr dimension7	phys::power_d {{2, -3, 1}}
	[M*L^2/T^3] energy per time

constexpr dimension7	phys::energy_density_d {{-1, -2, 1}}
	[M/L/T^2] energy per volume

constexpr dimension7	phys::pressure_d = energy_density_d
	[M/L/T^2] energy per volume = force per area

constexpr dimension7	phys::surface_tension_d = mass_flow_acceleration_d
	[M/T^2] energy per area

constexpr dimension7	phys::energy_line_density_d {{1, -2, 1}}
	[M/L/T^2] energy per line

constexpr dimension7	phys::power_density_d {{-1, -3, 1}}
	[M/L/T^3] power per volume

constexpr dimension7	phys::power_area_density_d = mass_flow_jerk_d
	[M/T^3] power per area

constexpr dimension7	phys::dynamic_viscosity_d {{-1, -1, 1}}
	[M/L/T] force / (area * gradient(velocity))

constexpr dimension7	phys::heat_flow_rate_d = power_d
	[M/L/T^3] (heat) energy per time

constexpr dimension7	phys::heat_density_d = mass_flow_acceleration_d
	[M/T^2] (heat flow) energy per area

constexpr dimension7	phys::heat_density_flow_rate_d = power_area_density_d
	[M/T^3] (heat flow) energy per area per time

constexpr dimension7	phys::heat_flux_density_d = power_area_density_d
	[M/T^3] (heat) energy per time per area

constexpr dimension7	phys::radiant_intensity_d = power_d
	[M/L/T^3] (radiation) energy per time

constexpr dimension7	phys::radiance_d = power_area_density_d
	[M/T^3] (radiation) power per area

constexpr dimension7	phys::irradiance_d = power_area_density_d
	[M/T^3] (radiation) power per area

derived (L, T, M, I) dimension7
constexpr dimension7	phys::current_density_d {{-2, 0, 0, 1}}
	[I/L^2] current per area

constexpr dimension7	phys::electric_charge_d {{0, 1, 0, 1}}
	[I*T] current integrate time

constexpr dimension7	phys::electric_charge_density_d {{-3, 1, 0, 1}}
	[I/L^3*T] charge per volume

constexpr dimension7	phys::electric_area_charge_density_d {{-2, 1, 0, 1}}
	[I/L^2*T] charge per area

constexpr dimension7	phys::electric_line_charge_density_d {{-1, 1, 0, 1}}
	[I/L*T] charge per line

constexpr dimension7	phys::electric_dipole_moment_d {{1, 1, 0, 1}}
	[ILT] charge times length

constexpr dimension7	phys::electric_flux_density_d = electric_area_charge_density_d
	[I/L^2*T]

constexpr dimension7	phys::electric_displacement_field_d = electric_area_charge_density_d
	[I/L^2*T], D

constexpr dimension7	phys::electric_polarization_field_d
	[I/L^2*T], P = dipole moment pe volume

constexpr dimension7	phys::magnetic_moment_d {{2, 0, 0, 1}}
	[I*L^2] current integrate area

constexpr dimension7	phys::magnetic_field_strength_d {{-1, 0, 0, 1}}
	[I/L] magnetic moment per volume

constexpr dimension7	phys::magnetization_d = magnetic_field_strength_d
	[I/L] magnetic moment per volume

constexpr dimension7	phys::electric_potential_d {{2, -3, 1, -1}}
	[M*L^2/T^3/I] energy per charge

constexpr dimension7	phys::electric_field_strenth_d {{1, -3, 1, -1}}
	[M*L/T^3/I] electric potential per length

constexpr dimension7	phys::electric_resistance_d {{2, -3, 1, -2}}
	[M*L^2/T^3/I^2] electric potential versus current

constexpr dimension7	phys::electric_conductance_d {{-2, 3, -1, 2}}
	[M^-1L^-2T^3*I^2] = 1 / electric_resistance

constexpr dimension7	phys::electric_resistivity_d {{3, -3, 1, -2}}
	[M*L^3/T^3/I^2] electric_resistance time length

constexpr dimension7	phys::electric_conductivity_d {{-3, 3, -1, 2}}
	[M^-1L^-3T^3*I^2] 1 / electric_resistivity

constexpr dimension7	phys::electric_capacitance_d {{-2, 4, -1, 2}}
	[M^-1L^-2T^4*I^2] charge versus electric potential

constexpr dimension7	phys::magnetic_flux_d {{2, -2, 1, -1}}
	[ML^2/T^2/I] energy per current = E/I = BS

constexpr dimension7	phys::magnetic_flux_density_d
	[M*T^-2/I] B = electric_field_strenth_d versus velocity

constexpr dimension7	phys::inductance_d {{2, -2, 1, -2}}
	[M*L^2/T^2/I^2] magnetic flux versus current, L

constexpr dimension7	phys::electric_chargme_mass_ratio_d {{0, 1, -1, 1}}
	[M^-1TI]

constexpr dimension7	phys::magnetic_permeability_d {{1, -2, 1, -2}}
	[M*L/T^2/I^2], mu

constexpr dimension7	phys::permittivity_d {{-3, 4, -1, 2}}
	[M^-1L^-2T^4*I^2], epsilon

derived (L, T, M, I, Q) dimension7
constexpr dimension7	phys::inv_temp_d {{0, 0, 0, 0, -1}}

constexpr dimension7	phys::heat_capacity_d {{2, -2, 1, 0, -1}}
	[M*L^2/T^2/Q] energy per temperature

constexpr dimension7	phys::entropy_d = heat_capacity_d
	[M*L^2/T^2/Q] energy per temperature

constexpr dimension7	phys::heat_transfer_coefficient_d
	[M/T^3/Q] heat_flux_density versus temperature

constexpr dimension7	phys::specific_heat_capacity_d {{2, -2, 0, 0, -1}}
	[L^2/T^2/Q] capacity per mass

constexpr dimension7	phys::thermal_conductivity_d {{1, -3, 1, 0, -1}}
	[M*L/T^3/Q]

constexpr dimension7	phys::thermal_insulance_d {{0, 3, -1, 0, 1}}
	[M^-1T^3Q] = 1 / heat_transfer_coefficient

constexpr dimension7	phys::thermal_resistance_d {{-2, 3, -1, 0, 1}}
	[M^-1L^-2T^3*Q]

constexpr dimension7	phys::thermal_resistivity_d {{-1, 3, -1, 0, 1}}
	[M^-1L^-1T^3*Q]

derived (L, T, M, I, Q, N) dimension7
constexpr dimension7	phys::concentration_d {{-3, 0, 0, 0, 0, 1}}
	[N/L^3] amount per volume

constexpr dimension7	phys::molar_energy_d {{2, -2, 1, 0, 0, -1}}
	[M*L^2/T^2/N] energy per amount

constexpr dimension7	phys::molar_entropy_d {{2, -2, 1, 0, -1, -1}}
	[M*L^2/T^2/Q/N] entropy per amount

derived (L, T, M, I, Q, N, J) dimension7
constexpr dimension7	phys::luminous_flux_d = luminous_intensity_d
	[J]

constexpr dimension7	phys::illuminance_d {{-2, 0, 0, 0, 0, 0, 1}}
	[J/L^2] luminous_intensity per area

constexpr dimension7	phys::luminance_d = illuminance_d
	[J/L^2] luminous_intensity per area

SI base
constexpr uval	phys::_nostd_1cal = 4.184L * _base_1J
	1 cal (non-standard)

constexpr uval	phys::_base_1 (dimensionless_d)
	1

constexpr uval	phys::_base_1m (length_d)
	1 meter

constexpr uval	phys::_base_1s (time_d)
	1 second

constexpr uval	phys::_base_1kg (mass_d)
	1 kilogram

constexpr uval	phys::_base_1A (electric_current_d)
	1 ampere

constexpr uval	phys::_base_1K (thermodynamic_temperature_d)
	1 kelvins

constexpr uval	phys::_base_1mol (amount_of_substance_d)
	1 mole

constexpr uval	phys::_base_1cd (luminous_intensity_d)
	1 candela

constexpr uval	phys::_base_1Hz (frequency_d)
	1 hertz

constexpr uval	phys::_base_1N (force_d)
	1 newton

constexpr uval	phys::_base_1Pa (pressure_d)
	1 pascal

constexpr uval	phys::_base_1J (energy_d)
	1 joule

constexpr uval	phys::_base_1W (power_d)
	1 watt

constexpr uval	phys::_base_1C (electric_charge_d)
	1 comloub

constexpr uval	phys::_base_1V (electric_potential_d)
	1 volt

constexpr uval	phys::_base_1F (electric_capacitance_d)
	1 faraday

constexpr uval	phys::_base_1S (electric_conductance_d)
	1 siemens

constexpr uval	phys::_base_1Om (electric_resistance_d)
	1 ohm

constexpr uval	phys::_base_1Wb (magnetic_flux_d)
	1 weber

constexpr uval	phys::_base_1T (magnetic_flux_density_d)
	1 tesla

constexpr uval	phys::_base_1H (inductance_d)
	1 henry

Macro Definition Documentation

◆ CONSTEXPR_DECOR

#define CONSTEXPR_DECOR

Definition at line 15 of file phys.h.

◆ CONSTTYPE

#define CONSTTYPE const

make this header is compatible to c++11 standard

Definition at line 14 of file phys.h.

◆ PHYS_DEFINE_UNITSYS_NAMESPACE

#define PHYS_DEFINE_UNITSYS_NAMESPACE	(	USNAME,
		_0,
		_1,
		_2,
		_3,
		_4,
		_5,
		_6 )

Value:

                                                                                                               \
    namespace USNAME {                                                                                         \
    using value_type = real_precision;                                                                         \
    CONSTTYPE unitsys unit(_0, _1, _2, _3, _4, _5, _6);                                                        \
    CONSTTYPE value_type c  = unitsys::conv(phys::c_lightspeed, unit);                                         \
    CONSTTYPE value_type h  = unitsys::conv(phys::h_Planck, unit);                                             \
    CONSTTYPE value_type hb = unitsys::conv(phys::hb_Planck, unit);                                            \
    CONSTTYPE value_type ke = unitsys::conv(phys::ke_Comloub, unit);                                           \
    CONSTTYPE value_type me = unitsys::conv(phys::me_mass, unit);                                              \
    CONSTTYPE value_type e  = unitsys::conv(phys::e_charge, unit);                                             \
    CONSTTYPE value_type k  = unitsys::conv(phys::k_Boltzman, unit);                                           \
    CONSTTYPE value_type N  = unitsys::conv(phys::N_Avagadro, unit);                                           \
    CONSTTYPE value_type G  = unitsys::conv(phys::G_gravitional_constant, unit);                               \
    inline value_type as(const dimension7 dim, const uval& u) { return unitsys::as(dim, u, unit); }            \
    inline value_type as(const dimension7 dim, const std::string& str) { return unitsys::as(dim, str, unit); } \
    };

Definition at line 870 of file phys.h.

Typedef Documentation

◆ real_precision

using real_precision = double

Definition at line 23 of file phys.h.

Classes

Namespaces

Macros

Typedefs

Enumerations

Functions
