la_utils.h File Reference

linear algebra for array More...

#include "array_utils.h"
#include "types.h"
#include "../thirdpart/Eigen/Dense"
#include "../thirdpart/Eigen/QR"

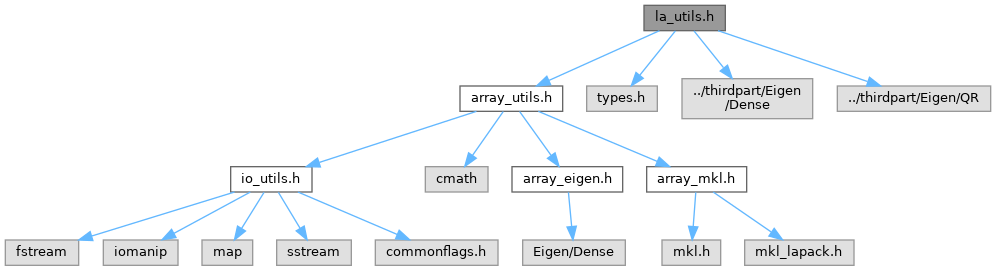

Include dependency graph for la_utils.h:

Go to the source code of this file.

Macros
#define	ARRAY_USE_EIGEN
#define	EigMajor   Eigen::RowMajor
#define	DEFINE_POINTER(T, name)
	each pointer associate with an eigen container
#define	DEFINE_POINTER_PROTECTED(T, name)
#define	ALLOCATE_PTR_TO_VECTOR(name, size)
	allocate eigen container, then refer ptr to the container
#define	ALLOCATE_PTR_TO_MATRIX(name, size1, size2)
	allocate eigen container, then refer ptr to the container

Typedefs
template<class T >
using	EigVX = Eigen::Matrix<T, Eigen::Dynamic, 1, EigMajor>
template<class T >
using	EigMX = Eigen::Matrix<T, Eigen::Dynamic, Eigen::Dynamic, EigMajor>
template<class T >
using	EigAX = Eigen::Array<T, Eigen::Dynamic, Eigen::Dynamic, EigMajor>
typedef EigVX< num_real >	EigVXr
typedef EigVX< num_complex >	EigVXc
typedef EigMX< num_real >	EigMXr
typedef EigMX< num_complex >	EigMXc
typedef EigMX< num_real >	EigAXr
typedef EigMX< num_complex >	EigAXc
typedef Eigen::Map< EigVXr >	MapVXr
typedef Eigen::Map< EigVXc >	MapVXc
typedef Eigen::Map< EigMXr >	MapMXr
typedef Eigen::Map< EigMXc >	MapMXc
typedef Eigen::Map< EigAXr >	MapAXr
typedef Eigen::Map< EigAXc >	MapAXc

Functions
void	LinearSolve (num_real *x, num_real *A, num_real *b, const int &N)
void	EigenSolve (num_real *E, num_real *T, num_real *A, const int &N)
void	EigenSolve (num_real *E, num_complex *T, num_complex *A, const int &N)
void	EigenSolve (num_complex *E, num_complex *T, num_complex *A, const int &N)
void	PseudoInverse (num_real *A, num_real *invA, const int &N, num_real e=1E-5)

Detailed Description

linear algebra for array

Author

xshinhe

Version

1.0

Date

2019-01-01

here we use eigen for linear algebra (with EIGEN_USE_MKL)

See also

eigen: https://eigen.tuxfamily.org/dox/ mkl : https://www.intel.com/content/www/us/en/develop/documentation/onemkl-lapack-examples/top.html

Definition in file la_utils.h.

Macro Definition Documentation

ALLOCATE_PTR_TO_MATRIX

#define ALLOCATE_PTR_TO_MATRIX	(		name,
			size1,
			size2 )

Value:

    name##_eigen_container.resize(size1, size2);   \
    name = name##_eigen_container.data();

allocate eigen container, then refer ptr to the container

Definition at line 124 of file la_utils.h.

ALLOCATE_PTR_TO_VECTOR

#define ALLOCATE_PTR_TO_VECTOR	(		name,
			size )

Value:

    name##_eigen_container.resize(size, 1); \
    name = name##_eigen_container.data();

allocate eigen container, then refer ptr to the container

Definition at line 117 of file la_utils.h.

ARRAY_USE_EIGEN

#define ARRAY_USE_EIGEN

Definition at line 25 of file la_utils.h.

DEFINE_POINTER

#define DEFINE_POINTER	(		T,
			name )

Value:

   public:                                                    \
    EigMX<T>& ref_##name() { return name##_eigen_container; } \
    T*        name;                                           \
    EigMX<T>  name##_eigen_container;

each pointer associate with an eigen container

Definition at line 100 of file la_utils.h.

DEFINE_POINTER_PROTECTED

#define DEFINE_POINTER_PROTECTED	(		T,
			name )

Value:

   public:                                                    \
    EigMX<T>& ref_##name() { return name##_eigen_container; } \
                                                              \
   protected:                                                 \
    T*       name;                                            \
    EigMX<T> name##_eigen_container;

Definition at line 106 of file la_utils.h.

EigMajor

#define EigMajor   Eigen::RowMajor

Definition at line 62 of file la_utils.h.

Typedef Documentation

EigAX

template<class T >

using EigAX = Eigen::Array<T, Eigen::Dynamic, Eigen::Dynamic, EigMajor>

Definition at line 71 of file la_utils.h.

EigAXc

typedef EigMX<num_complex> EigAXc

Definition at line 78 of file la_utils.h.

EigAXr

typedef EigMX<num_real> EigAXr

Definition at line 77 of file la_utils.h.

EigMX

template<class T >

using EigMX = Eigen::Matrix<T, Eigen::Dynamic, Eigen::Dynamic, EigMajor>

Definition at line 68 of file la_utils.h.

EigMXc

typedef EigMX<num_complex> EigMXc

Definition at line 76 of file la_utils.h.

EigMXr

typedef EigMX<num_real> EigMXr

Definition at line 75 of file la_utils.h.

EigVX

template<class T >

using EigVX = Eigen::Matrix<T, Eigen::Dynamic, 1, EigMajor>

Definition at line 65 of file la_utils.h.

EigVXc

typedef EigVX<num_complex> EigVXc

Definition at line 74 of file la_utils.h.

EigVXr

typedef EigVX<num_real> EigVXr

Definition at line 73 of file la_utils.h.

MapAXc

typedef Eigen::Map<EigAXc> MapAXc

Definition at line 84 of file la_utils.h.

MapAXr

typedef Eigen::Map<EigAXr> MapAXr

Definition at line 83 of file la_utils.h.

MapMXc

typedef Eigen::Map<EigMXc> MapMXc

Definition at line 82 of file la_utils.h.

MapMXr

typedef Eigen::Map<EigMXr> MapMXr

Definition at line 81 of file la_utils.h.

MapVXc

typedef Eigen::Map<EigVXc> MapVXc

Definition at line 80 of file la_utils.h.

MapVXr

typedef Eigen::Map<EigVXr> MapVXr

Definition at line 79 of file la_utils.h.

Function Documentation

EigenSolve() [1/3]

void EigenSolve	(	num_complex *	E,
		num_complex *	T,
		num_complex *	A,
		const int &	N )

EigenSolve() [2/3]

void EigenSolve	(	num_real *	E,
		num_complex *	T,
		num_complex *	A,
		const int &	N )

EigenSolve() [3/3]

void EigenSolve	(	num_real *	E,
		num_real *	T,
		num_real *	A,
		const int &	N )

LinearSolve()

void LinearSolve	(	num_real *	x,
		num_real *	A,
		num_real *	b,
		const int &	N )

PseudoInverse()

void PseudoInverse	(	num_real *	A,
		num_real *	invA,
		const int &	N,
		num_real	e = 1E-5 )
