PROJECT_NS::Kernel Class Reference

this class provides the container and implementation of algorithms More...

#include <Kernel.h>

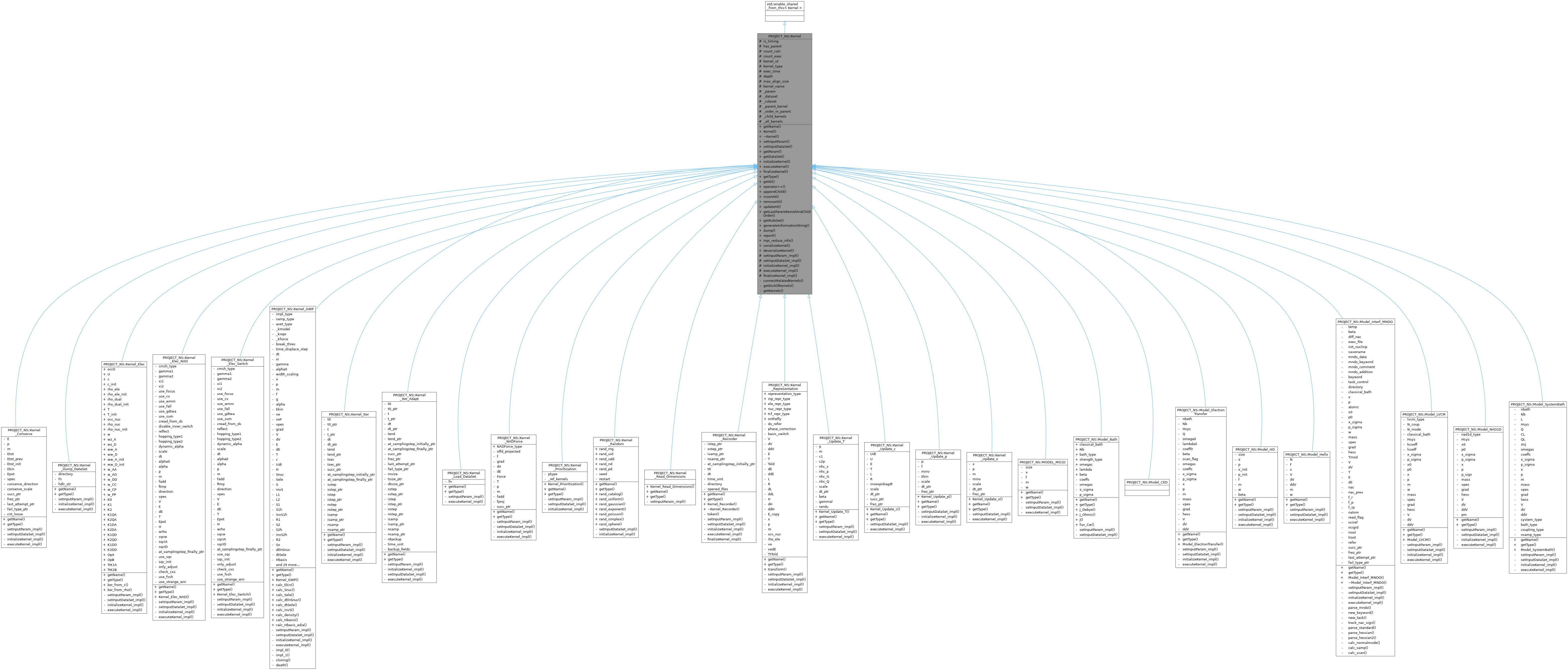

Inheritance diagram for PROJECT_NS::Kernel:

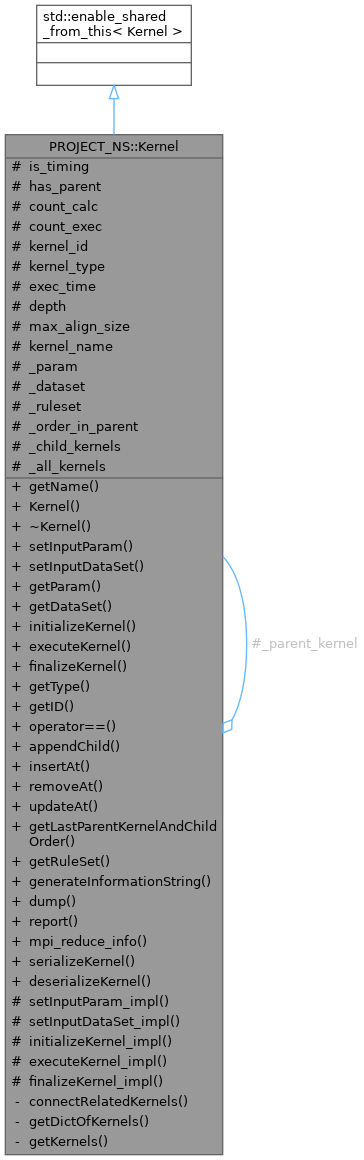

Collaboration diagram for PROJECT_NS::Kernel:

Public Member Functions
virtual const std::string	getName ()
	Get the name of the kernel.
	Kernel (const std::string &customized_name="")
	Constructor with an optional specified name.
virtual	~Kernel ()
	Destructor.
void	setInputParam (std::shared_ptr< Param > &PM)
	Set input parameters for the kernel and its children.
void	setInputDataSet (std::shared_ptr< DataSet > &DS)
	Set input data set for the kernel and its children.
std::shared_ptr< Param >	getParam () const
	Get the parameter associated with the kernel.
std::shared_ptr< DataSet >	getDataSet () const
	Get the data set associated with the kernel.
Status &	initializeKernel (Status &stat)
	Prepare initial conditions for the kernel and its children.
Status &	executeKernel (Status &stat)
	Execute the kernel's algorithm and those of its children.
Status &	finalizeKernel (Status &stat)
	Finalize the kernel and its children, performing any necessary cleanup.
virtual int	getType () const
	Get the type of the kernel.
int	getID () const
	Get the ID of the kernel.
bool	operator== (const Kernel &ker)
	Overloaded equality operator to compare two Kernel objects by their IDs.
Kernel &	appendChild (std::shared_ptr< Kernel > ker)
	Append a kernel as the last child of the current tree node.
Kernel &	insertAt (std::vector< std::size_t > indexes, std::shared_ptr< Kernel > ker)
	Insert a kernel at specified indexes in the tree.
Kernel &	removeAt (std::vector< std::size_t > indexes)
	Remove kernels at specified indexes from the tree.
Kernel &	updateAt (std::vector< std::size_t > indexes, std::shared_ptr< Kernel > ker)
	Update the kernel at specified indexes in the tree.
std::tuple< Kernel *, std::size_t >	getLastParentKernelAndChildOrder ()
	Retrieve the last parent kernel along with the order of its child kernels, if available.
std::shared_ptr< RuleSet >	getRuleSet ()
	Get RuleSet associated with the Kernel.
const std::string	generateInformationString (double total_time=-1.0f, int current_layer=0, int total_depth=0, int total_align_size=0)
	Generate a formatted string containing information about the kernel.

Static Public Member Functions
static int	dump (Kernel *ker)
static int	report (Kernel *ker)
static int	mpi_reduce_info (Kernel *ker)
static const std::string	serializeKernel (const Kernel &ker)
	Serialize a Kernel object into a string representation.
static std::shared_ptr< Kernel >	deserializeKernel (const std::string &str)
	Deserialize a string representation into a Kernel object.

Protected Member Functions
virtual void	setInputParam_impl (std::shared_ptr< Param > &PM)
	Virtual function to set input parameters for the kernel implementation.
virtual void	setInputDataSet_impl (std::shared_ptr< DataSet > &DS)
	Virtual function to set input data set for the kernel implementation.
virtual Status &	initializeKernel_impl (Status &stat)
	Virtual function to initialize the kernel implementation.
virtual Status &	executeKernel_impl (Status &stat)
	Virtual function to execute the kernel implementation.
virtual Status &	finalizeKernel_impl (Status &stat)
	Virtual function to finalize the kernel implementation.

Protected Attributes
bool	is_timing = false
	Flag indicating whether timing is enabled for this kernel.
bool	has_parent = false
	Flag indicating whether the kernel has a parent.
int	count_calc = 0
	Counter for the number of calculations performed by this kernel.
int	count_exec = 0
	Counter for the number of executions performed by this kernel.
int	kernel_id = 0
	ID of the kernel.
int	kernel_type = 0
	Type of the kernel.
double	exec_time = 0.0f
	Total execution time of the kernel.
int	depth = 0
	Depth of the kernel in the tree structure.
int	max_align_size = 0
	Maximum alignment size used by this kernel.
std::string	kernel_name
	Name of the kernel.
std::shared_ptr< Param >	_param
	Shared pointer to the Param object associated with this kernel.
std::shared_ptr< DataSet >	_dataset
	Shared pointer to the DataSet object associated with this kernel.
std::shared_ptr< RuleSet >	_ruleset
	Recorded Rules associated with the Kernel.
Kernel *	_parent_kernel
	Pointer to the parent kernel.
std::size_t	_order_in_parent
	Order of this kernel in its parent's children.
std::vector< std::shared_ptr< Kernel > >	_child_kernels
	Vector containing shared pointers to the child kernels of this kernel.
std::vector< std::shared_ptr< Kernel > >	_all_kernels
	Vector containing shared pointers to all descendant kernels of this kernel.

Private Member Functions
void	connectRelatedKernels (std::shared_ptr< Kernel > &ker)
	Connect related kernels to this kernel.

Static Private Member Functions
static std::map< std::string, Kernel * > &	getDictOfKernels ()
	Get the dictionary of kernels (mapping from names to kernel pointers).
static std::vector< Kernel * > &	getKernels ()
	Get the vector of all kernel pointers.

Detailed Description

this class provides the container and implementation of algorithms

Definition at line 60 of file Kernel.h.

Constructor & Destructor Documentation

Kernel()

Kernel::Kernel

(

const std::string &

customized_name = ""

)

Constructor with an optional specified name.

Parameters

customized_name

The name of the kernel (optional).

Definition at line 12 of file Kernel.cpp.

References getKernels(), getName(), getType(), kernel_id, kernel_type, and max_align_size.

Here is the call graph for this function:

~Kernel()

Kernel::~Kernel ( )

virtual

Destructor.

Definition at line 19 of file Kernel.cpp.

Member Function Documentation

appendChild()

Kernel & Kernel::appendChild

(

std::shared_ptr< Kernel >

ker

)

Append a kernel as the last child of the current tree node.

Parameters

ker	The kernel to append as the last child.

Returns

Reference to the modified kernel.

Definition at line 78 of file Kernel.cpp.

References _child_kernels, _order_in_parent, _ruleset, depth, getLastParentKernelAndChildOrder(), and max_align_size.

Referenced by PROJECT_NS::Kernel_Elec_NAD::Kernel_Elec_NAD(), PROJECT_NS::Kernel_Elec_Switch::Kernel_Elec_Switch(), PROJECT_NS::Kernel_GWP::Kernel_GWP(), PROJECT_NS::Model_ElectronTransfer::Model_ElectronTransfer(), and PROJECT_NS::Model_SystemBath::Model_SystemBath().

Here is the call graph for this function:

Here is the caller graph for this function:

connectRelatedKernels()

void Kernel::connectRelatedKernels ( std::shared_ptr< Kernel > & ker )

private

Connect related kernels to this kernel.

This function connects related kernels to the current kernel. Related kernels are kernels that are associated with or connected to this kernel in some way.

Note

The exact definition of "related kernels" may vary depending on the context and application.

Definition at line 228 of file Kernel.cpp.

References _all_kernels, and connectRelatedKernels().

Referenced by connectRelatedKernels().

Here is the call graph for this function:

Here is the caller graph for this function:

deserializeKernel()

std::shared_ptr< Kernel > Kernel::deserializeKernel ( const std::string & str )

static

Deserialize a string representation into a Kernel object.

Parameters

str	The string containing the serialized Kernel object.

Returns

A shared pointer to the deserialized Kernel object.

Definition at line 187 of file Kernel.cpp.

dump()

static int PROJECT_NS::Kernel::dump ( Kernel * ker )

inlinestatic

Definition at line 71 of file Kernel.h.

executeKernel()

Status & Kernel::executeKernel

(

Status &

stat

)

Execute the kernel's algorithm and those of its children.

Parameters

stat	The status object to store execution status.

Returns

The status object after execution.

Definition at line 48 of file Kernel.cpp.

References _child_kernels, _dataset, _ruleset, count_exec, exec_time, executeKernel_impl(), has_parent, and is_timing.

Referenced by PROJECT_NS::Kernel_Conserve::initializeKernel_impl(), PROJECT_NS::Kernel_Elec_NAD::initializeKernel_impl(), PROJECT_NS::Kernel_Elec_Switch::initializeKernel_impl(), PROJECT_NS::Kernel_GWP::initializeKernel_impl(), PROJECT_NS::Kernel_NADForce::initializeKernel_impl(), PROJECT_NS::Kernel_Representation::initializeKernel_impl(), PROJECT_NS::Model_ElectronTransfer::initializeKernel_impl(), PROJECT_NS::Model_LVCM::initializeKernel_impl(), PROJECT_NS::Model_NAD1D::initializeKernel_impl(), and PROJECT_NS::Model_SystemBath::initializeKernel_impl().

Here is the call graph for this function:

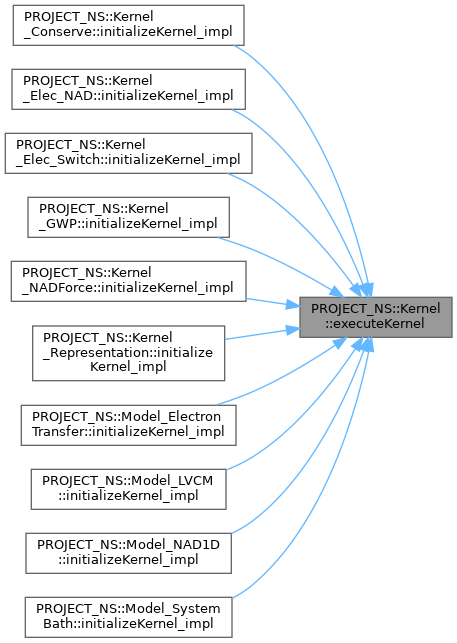

Here is the caller graph for this function:

executeKernel_impl()

Status & Kernel::executeKernel_impl ( Status & stat )

protectedvirtual

Virtual function to execute the kernel implementation.

Parameters

stat	Status object to store execution status.

Returns

Status object after execution.

Reimplemented in PROJECT_NS::Kernel_Conserve, PROJECT_NS::Kernel_Dump_DataSet, PROJECT_NS::Kernel_Elec, PROJECT_NS::Kernel_Elec_NAD, PROJECT_NS::Kernel_Elec_Switch, PROJECT_NS::Kernel_GWP, PROJECT_NS::Kernel_Iter, PROJECT_NS::Kernel_Iter_Adapt, PROJECT_NS::Kernel_Load_DataSet, PROJECT_NS::Kernel_NADForce, PROJECT_NS::Kernel_Recorder, PROJECT_NS::Kernel_Representation, PROJECT_NS::Kernel_Update_c, PROJECT_NS::Kernel_Update_p, PROJECT_NS::Kernel_Update_T, PROJECT_NS::Kernel_Update_x, PROJECT_NS::Model_ElectronTransfer, PROJECT_NS::Model_Hello, PROJECT_NS::Model_Interf_MNDO, PROJECT_NS::Model_LVCM, PROJECT_NS::Model_HO, PROJECT_NS::MODEL_MD1D, PROJECT_NS::Model_NAD1D, and PROJECT_NS::Model_SystemBath.

Definition at line 224 of file Kernel.cpp.

Referenced by executeKernel().

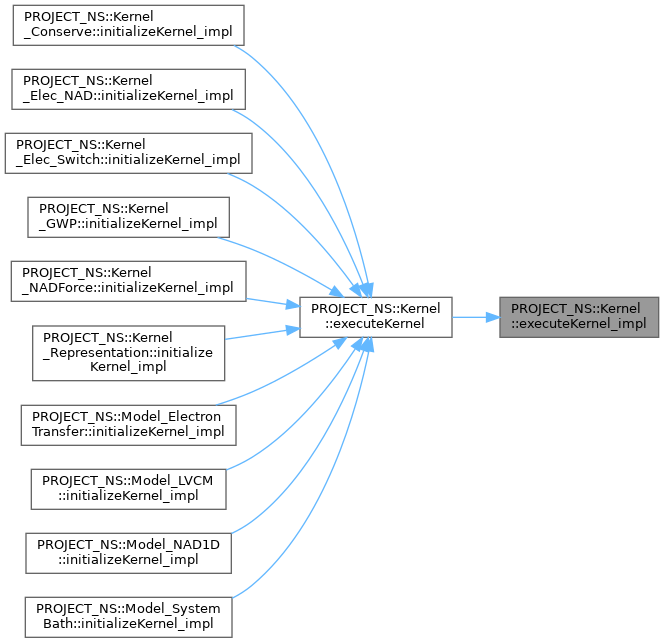

Here is the caller graph for this function:

finalizeKernel()

Status & Kernel::finalizeKernel

(

Status &

stat

)

Finalize the kernel and its children, performing any necessary cleanup.

Parameters

stat	The status object to store finalization status.

Returns

The status object after finalization.

Definition at line 66 of file Kernel.cpp.

References _child_kernels, and finalizeKernel_impl().

Here is the call graph for this function:

finalizeKernel_impl()

Status & Kernel::finalizeKernel_impl ( Status & stat )

protectedvirtual

Virtual function to finalize the kernel implementation.

Parameters

stat	Status object to store finalization status.

Returns

Status object after finalization.

Reimplemented in PROJECT_NS::Kernel_Recorder.

Definition at line 226 of file Kernel.cpp.

Referenced by finalizeKernel().

Here is the caller graph for this function:

generateInformationString()

const std::string Kernel::generateInformationString	(	double	total_time = -1.0f,
		int	current_layer = 0,
		int	total_depth = 0,
		int	total_align_size = 0 )

Generate a formatted string containing information about the kernel.

This function generates a formatted string containing information about the kernel, including its total time, current layer, total depth, and total alignment size.

Parameters

total_time	The total time taken by the kernel (default: -1.0f).
current_layer	The current layer of the kernel (default: 0).
total_depth	The total depth of the kernel (default: 0).
total_align_size	The total alignment size of the kernel (default: 0).

Returns

A formatted string containing kernel information.

Definition at line 189 of file Kernel.cpp.

References _child_kernels, depth, exec_time, getName(), kernel_id, and max_align_size.

Here is the call graph for this function:

getDataSet()

std::shared_ptr< DataSet > Kernel::getDataSet

(

)

const

Get the data set associated with the kernel.

Returns

Shared pointer to the DataSet object.

Definition at line 37 of file Kernel.cpp.

References _dataset.

getDictOfKernels()

static std::map< std::string, Kernel * > & PROJECT_NS::Kernel::getDictOfKernels ( )

staticprivate

Get the dictionary of kernels (mapping from names to kernel pointers).

This function returns a reference to the static map containing the dictionary of kernels. The dictionary maps kernel names to their corresponding kernel pointers.

Returns

A reference to the dictionary of kernels.

getID()

int Kernel::getID

(

)

const

Get the ID of the kernel.

Returns

The ID of the kernel.

Definition at line 74 of file Kernel.cpp.

References kernel_id.

Referenced by PROJECT_NS::Kernel_Prioritization::getName(), and operator==().

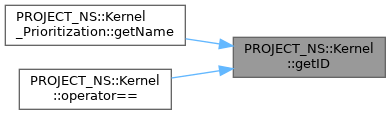

Here is the caller graph for this function:

getKernels()

std::vector< Kernel * > & Kernel::getKernels ( )

staticprivate

Get the vector of all kernel pointers.

This function returns a reference to the static vector containing pointers to all kernels.

Returns

A reference to the vector of all kernel pointers.

Definition at line 247 of file Kernel.cpp.

Referenced by Kernel().

Here is the caller graph for this function:

getLastParentKernelAndChildOrder()

std::tuple< Kernel *, std::size_t > Kernel::getLastParentKernelAndChildOrder

(

)

Retrieve the last parent kernel along with the order of its child kernels, if available.

Returns

A tuple containing a pointer to the last parent kernel and the order of its child kernels.

Definition at line 178 of file Kernel.cpp.

References _order_in_parent, _parent_kernel, and has_parent.

Referenced by appendChild(), insertAt(), and updateAt().

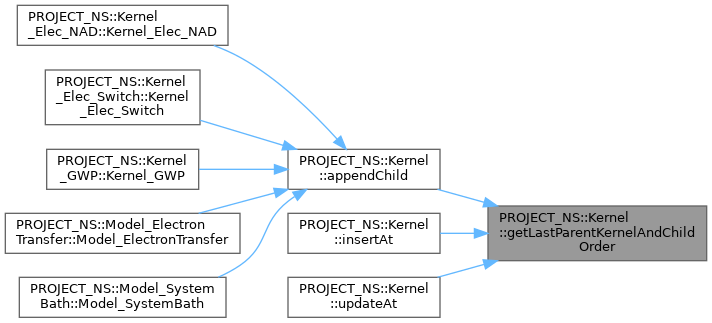

Here is the caller graph for this function:

getName()

virtual const std::string PROJECT_NS::Kernel::getName ( )

inlinevirtual

Get the name of the kernel.

Returns the concatenated name of the kernel, prefixed with "Kernel__".

Returns

The name of the kernel.

Reimplemented in PROJECT_NS::Kernel_Conserve, PROJECT_NS::Kernel_Dump_DataSet, PROJECT_NS::Kernel_Elec, PROJECT_NS::Kernel_Elec_NAD, PROJECT_NS::Kernel_Elec_Switch, PROJECT_NS::Kernel_GWP, PROJECT_NS::Kernel_Iter, PROJECT_NS::Kernel_Iter_Adapt, PROJECT_NS::Kernel_Load_DataSet, PROJECT_NS::Kernel_NADForce, PROJECT_NS::Kernel_Prioritization, PROJECT_NS::Kernel_Random, PROJECT_NS::Kernel_Read_Dimensions, PROJECT_NS::Kernel_Recorder, PROJECT_NS::Kernel_Representation, PROJECT_NS::Kernel_Update_c, PROJECT_NS::Kernel_Update_p, PROJECT_NS::Kernel_Update_T, PROJECT_NS::Kernel_Update_x, PROJECT_NS::Model_Bath, PROJECT_NS::Model_ElectronTransfer, PROJECT_NS::Model_Hello, PROJECT_NS::Model_Interf_MNDO, PROJECT_NS::Model_LVCM, PROJECT_NS::Model_HO, PROJECT_NS::MODEL_MD1D, PROJECT_NS::Model_NAD1D, and PROJECT_NS::Model_SystemBath.

Definition at line 69 of file Kernel.h.

References utils::concat(), and kernel_name.

Referenced by generateInformationString(), and Kernel().

Here is the call graph for this function:

Here is the caller graph for this function:

getParam()

std::shared_ptr< Param > Kernel::getParam

(

)

const

Get the parameter associated with the kernel.

Returns

Shared pointer to the Param object.

Definition at line 35 of file Kernel.cpp.

References _param.

getRuleSet()

std::shared_ptr< RuleSet > Kernel::getRuleSet

(

)

Get RuleSet associated with the Kernel.

Returns

The RuleSet (name, dataPointer, datatype, size, stride).

Definition at line 183 of file Kernel.cpp.

References _ruleset.

getType()

int Kernel::getType ( ) const

virtual

Get the type of the kernel.

This function returns the type of the kernel.

Note

This function should be implemented in derived classes to return the specific type of the kernel.

Returns

The type of the kernel.

Reimplemented in PROJECT_NS::Kernel_Conserve, PROJECT_NS::Kernel_Dump_DataSet, PROJECT_NS::Kernel_Elec, PROJECT_NS::Kernel_Elec_NAD, PROJECT_NS::Kernel_Elec_Switch, PROJECT_NS::Kernel_GWP, PROJECT_NS::Kernel_Iter, PROJECT_NS::Kernel_Iter_Adapt, PROJECT_NS::Kernel_Load_DataSet, PROJECT_NS::Kernel_NADForce, PROJECT_NS::Kernel_Prioritization, PROJECT_NS::Kernel_Random, PROJECT_NS::Kernel_Read_Dimensions, PROJECT_NS::Kernel_Recorder, PROJECT_NS::Kernel_Representation, PROJECT_NS::Kernel_Update_c, PROJECT_NS::Kernel_Update_p, PROJECT_NS::Kernel_Update_T, PROJECT_NS::Kernel_Update_x, PROJECT_NS::Model_Bath, PROJECT_NS::Model_ElectronTransfer, PROJECT_NS::Model_Hello, PROJECT_NS::Model_Interf_MNDO, PROJECT_NS::Model_LVCM, PROJECT_NS::Model_HO, PROJECT_NS::MODEL_MD1D, PROJECT_NS::Model_NAD1D, and PROJECT_NS::Model_SystemBath.

Definition at line 72 of file Kernel.cpp.

References FUNCTION_NAME, and utils::hash().

Referenced by Kernel().

Here is the call graph for this function:

Here is the caller graph for this function:

initializeKernel()

Status & Kernel::initializeKernel

(

Status &

stat

)

Prepare initial conditions for the kernel and its children.

Parameters

stat	The status object to store initialization status.

Returns

The status object after initialization.

Definition at line 39 of file Kernel.cpp.

References _child_kernels, _dataset, count_calc, and initializeKernel_impl().

Here is the call graph for this function:

initializeKernel_impl()

Status & Kernel::initializeKernel_impl ( Status & stat )

protectedvirtual

Virtual function to initialize the kernel implementation.

Parameters

stat	Status object to store initialization status.

Returns

Status object after initialization.

Reimplemented in PROJECT_NS::Kernel_Conserve, PROJECT_NS::Kernel_Dump_DataSet, PROJECT_NS::Kernel_Elec, PROJECT_NS::Kernel_Elec_NAD, PROJECT_NS::Kernel_Elec_Switch, PROJECT_NS::Kernel_GWP, PROJECT_NS::Kernel_Iter, PROJECT_NS::Kernel_Iter_Adapt, PROJECT_NS::Kernel_NADForce, PROJECT_NS::Kernel_Prioritization, PROJECT_NS::Kernel_Random, PROJECT_NS::Kernel_Recorder, PROJECT_NS::Kernel_Representation, PROJECT_NS::Kernel_Update_p, PROJECT_NS::Model_ElectronTransfer, PROJECT_NS::Model_Interf_MNDO, PROJECT_NS::Model_LVCM, PROJECT_NS::Model_HO, PROJECT_NS::Model_NAD1D, and PROJECT_NS::Model_SystemBath.

Definition at line 222 of file Kernel.cpp.

Referenced by initializeKernel().

Here is the caller graph for this function:

insertAt()

Kernel & Kernel::insertAt	(	std::vector< std::size_t >	indexes,
		std::shared_ptr< Kernel >	ker )

Insert a kernel at specified indexes in the tree.

Parameters

indexes	Indexes indicating the position to insert the kernel.
ker	The kernel to insert.

Returns

Reference to the modified kernel.

Definition at line 102 of file Kernel.cpp.

References _child_kernels, _ruleset, and getLastParentKernelAndChildOrder().

Here is the call graph for this function:

mpi_reduce_info()

static int PROJECT_NS::Kernel::mpi_reduce_info ( Kernel * ker )

inlinestatic

Definition at line 75 of file Kernel.h.

operator==()

bool Kernel::operator==

(

const Kernel &

ker

)

Overloaded equality operator to compare two Kernel objects by their IDs.

Parameters

ker	The Kernel object to compare with.

Returns

True if the IDs of the two kernels are equal, otherwise false.

Definition at line 76 of file Kernel.cpp.

References getID().

Here is the call graph for this function:

removeAt()

Kernel & Kernel::removeAt

(

std::vector< std::size_t >

indexes

)

Remove kernels at specified indexes from the tree.

Parameters

indexes

Indexes indicating the kernels to remove.

Returns

Reference to the modified kernel.

Definition at line 128 of file Kernel.cpp.

References _child_kernels.

report()

static int PROJECT_NS::Kernel::report ( Kernel * ker )

inlinestatic

Definition at line 73 of file Kernel.h.

serializeKernel()

const std::string Kernel::serializeKernel ( const Kernel & ker )

static

Serialize a Kernel object into a string representation.

Parameters

ker	The Kernel object to serialize.

Returns

A string representing the serialized Kernel object.

Definition at line 185 of file Kernel.cpp.

setInputDataSet()

void Kernel::setInputDataSet

(

std::shared_ptr< DataSet > &

DS

)

Set input data set for the kernel and its children.

Parameters

DS	Shared pointer to the DataSet object.

Definition at line 28 of file Kernel.cpp.

References _child_kernels, _dataset, _param, and setInputDataSet_impl().

Here is the call graph for this function:

setInputDataSet_impl()

void Kernel::setInputDataSet_impl ( std::shared_ptr< DataSet > & DS )

protectedvirtual

Virtual function to set input data set for the kernel implementation.

Parameters

DS	Shared pointer to the DataSet object containing input data.

Reimplemented in PROJECT_NS::Kernel_Conserve, PROJECT_NS::Kernel_Elec, PROJECT_NS::Kernel_Elec_NAD, PROJECT_NS::Kernel_Elec_Switch, PROJECT_NS::Kernel_GWP, PROJECT_NS::Kernel_Iter, PROJECT_NS::Kernel_Iter_Adapt, PROJECT_NS::Kernel_NADForce, PROJECT_NS::Kernel_Prioritization, PROJECT_NS::Kernel_Random, PROJECT_NS::Kernel_Recorder, PROJECT_NS::Kernel_Representation, PROJECT_NS::Kernel_Update_c, PROJECT_NS::Kernel_Update_p, PROJECT_NS::Kernel_Update_T, PROJECT_NS::Kernel_Update_x, PROJECT_NS::Model_Bath, PROJECT_NS::Model_ElectronTransfer, PROJECT_NS::Model_Hello, PROJECT_NS::Model_Interf_MNDO, PROJECT_NS::Model_LVCM, PROJECT_NS::Model_NAD1D, and PROJECT_NS::Model_SystemBath.

Definition at line 220 of file Kernel.cpp.

Referenced by setInputDataSet().

Here is the caller graph for this function:

setInputParam()

void Kernel::setInputParam

(

std::shared_ptr< Param > &

PM

)

Set input parameters for the kernel and its children.

Parameters

PM	Shared pointer to the Param object.

Definition at line 21 of file Kernel.cpp.

References _child_kernels, _param, is_timing, LOC, and setInputParam_impl().

Here is the call graph for this function:

setInputParam_impl()

void Kernel::setInputParam_impl ( std::shared_ptr< Param > & PM )

protectedvirtual

Virtual function to set input parameters for the kernel implementation.

Parameters

PM	Shared pointer to the Param object containing input parameters.

Reimplemented in PROJECT_NS::Kernel_Conserve, PROJECT_NS::Kernel_Dump_DataSet, PROJECT_NS::Kernel_Elec, PROJECT_NS::Kernel_Elec_NAD, PROJECT_NS::Kernel_Elec_Switch, PROJECT_NS::Kernel_GWP, PROJECT_NS::Kernel_Iter, PROJECT_NS::Kernel_Iter_Adapt, PROJECT_NS::Kernel_Load_DataSet, PROJECT_NS::Kernel_NADForce, PROJECT_NS::Kernel_Prioritization, PROJECT_NS::Kernel_Read_Dimensions, PROJECT_NS::Kernel_Recorder, PROJECT_NS::Kernel_Representation, PROJECT_NS::Kernel_Update_T, PROJECT_NS::Model_Bath, PROJECT_NS::Model_ElectronTransfer, PROJECT_NS::Model_Hello, PROJECT_NS::Model_Interf_MNDO, PROJECT_NS::Model_LVCM, PROJECT_NS::Model_NAD1D, and PROJECT_NS::Model_SystemBath.

Definition at line 218 of file Kernel.cpp.

Referenced by setInputParam().

Here is the caller graph for this function:

updateAt()

Kernel & Kernel::updateAt	(	std::vector< std::size_t >	indexes,
		std::shared_ptr< Kernel >	ker )

Update the kernel at specified indexes in the tree.

build tree structure of the kernel

Parameters

indexes	Indexes indicating the kernel to update.
ker	The kernel to update with.

Returns

Reference to the modified kernel.

Definition at line 147 of file Kernel.cpp.

References _child_kernels, _ruleset, and getLastParentKernelAndChildOrder().

Here is the call graph for this function:

Member Data Documentation

_all_kernels

std::vector<std::shared_ptr<Kernel> > PROJECT_NS::Kernel::_all_kernels

protected

Vector containing shared pointers to all descendant kernels of this kernel.

Definition at line 303 of file Kernel.h.

Referenced by connectRelatedKernels().

_child_kernels

std::vector<std::shared_ptr<Kernel> > PROJECT_NS::Kernel::_child_kernels

protected

Vector containing shared pointers to the child kernels of this kernel.

Definition at line 298 of file Kernel.h.

Referenced by appendChild(), executeKernel(), PROJECT_NS::Kernel_Iter::executeKernel_impl(), PROJECT_NS::Kernel_Iter_Adapt::executeKernel_impl(), finalizeKernel(), generateInformationString(), initializeKernel(), insertAt(), removeAt(), setInputDataSet(), PROJECT_NS::Model_ElectronTransfer::setInputDataSet_impl(), PROJECT_NS::Model_SystemBath::setInputDataSet_impl(), setInputParam(), and updateAt().

_dataset

std::shared_ptr<DataSet> PROJECT_NS::Kernel::_dataset

protected

Shared pointer to the DataSet object associated with this kernel.

Definition at line 278 of file Kernel.h.

Referenced by executeKernel(), PROJECT_NS::Kernel_Dump_DataSet::executeKernel_impl(), PROJECT_NS::Kernel_Iter_Adapt::executeKernel_impl(), PROJECT_NS::Kernel_Load_DataSet::executeKernel_impl(), getDataSet(), initializeKernel(), PROJECT_NS::Kernel_Dump_DataSet::initializeKernel_impl(), PROJECT_NS::Kernel_Elec::initializeKernel_impl(), PROJECT_NS::Kernel_Elec_NAD::initializeKernel_impl(), PROJECT_NS::Kernel_Elec_Switch::initializeKernel_impl(), PROJECT_NS::Kernel_GWP::initializeKernel_impl(), PROJECT_NS::Kernel_Representation::initializeKernel_impl(), PROJECT_NS::Model_ElectronTransfer::initializeKernel_impl(), PROJECT_NS::Model_Interf_MNDO::initializeKernel_impl(), PROJECT_NS::Model_LVCM::initializeKernel_impl(), PROJECT_NS::Model_NAD1D::initializeKernel_impl(), PROJECT_NS::Model_SystemBath::initializeKernel_impl(), PROJECT_NS::Model_Interf_MNDO::parse_standard(), setInputDataSet(), and PROJECT_NS::Kernel_Recorder::token().

_order_in_parent

std::size_t PROJECT_NS::Kernel::_order_in_parent

protected

Order of this kernel in its parent's children.

Definition at line 293 of file Kernel.h.

Referenced by appendChild(), and getLastParentKernelAndChildOrder().

_param

std::shared_ptr<Param> PROJECT_NS::Kernel::_param

protected

Shared pointer to the Param object associated with this kernel.

Definition at line 273 of file Kernel.h.

Referenced by PROJECT_NS::Kernel_Iter_Adapt::executeKernel_impl(), getParam(), PROJECT_NS::Kernel_Elec_NAD::initializeKernel_impl(), PROJECT_NS::Kernel_Elec_Switch::initializeKernel_impl(), PROJECT_NS::Kernel_Recorder::initializeKernel_impl(), PROJECT_NS::Model_Interf_MNDO::initializeKernel_impl(), setInputDataSet(), PROJECT_NS::Model_Bath::setInputDataSet_impl(), PROJECT_NS::Model_ElectronTransfer::setInputDataSet_impl(), PROJECT_NS::Model_Interf_MNDO::setInputDataSet_impl(), PROJECT_NS::Model_LVCM::setInputDataSet_impl(), PROJECT_NS::Model_NAD1D::setInputDataSet_impl(), PROJECT_NS::Model_SystemBath::setInputDataSet_impl(), setInputParam(), PROJECT_NS::Kernel_NADForce::setInputParam_impl(), PROJECT_NS::Model_Bath::setInputParam_impl(), PROJECT_NS::Model_ElectronTransfer::setInputParam_impl(), PROJECT_NS::Model_LVCM::setInputParam_impl(), PROJECT_NS::Model_NAD1D::setInputParam_impl(), and PROJECT_NS::Model_SystemBath::setInputParam_impl().

_parent_kernel

Kernel* PROJECT_NS::Kernel::_parent_kernel

protected

Pointer to the parent kernel.

Definition at line 288 of file Kernel.h.

Referenced by getLastParentKernelAndChildOrder().

_ruleset

std::shared_ptr<RuleSet> PROJECT_NS::Kernel::_ruleset

protected

Recorded Rules associated with the Kernel.

Definition at line 283 of file Kernel.h.

Referenced by appendChild(), executeKernel(), PROJECT_NS::Kernel_Recorder::executeKernel_impl(), PROJECT_NS::Kernel_Recorder::finalizeKernel_impl(), getRuleSet(), PROJECT_NS::Kernel_Recorder::initializeKernel_impl(), insertAt(), PROJECT_NS::Kernel_Recorder::Kernel_Recorder(), PROJECT_NS::Kernel_Recorder::token(), and updateAt().

---

The documentation for this class was generated from the following files:

• Kernel.h
• Kernel.cpp
